• Product Code: 11734 SL D

• Length: 1000 mm

• Width: 1000 mm

• Weight: 19 kg

• Body Material: AL

• Background Material: Reflective

• One-way warning

• 54 f/min flashing warning

• High performance reflective floor and led lamps

• Battery powered by solar energy and does not require replacement

• Continuous, efficient and effective warning all day long with charging in daylight

• The solar panel is self-contained thanks to the ball-shaped metal joint.

• Able to tilt 360° on its axis, 45° forward-backward and right-left

• On-off button

• Operating environment temperature -20°C/+70°C

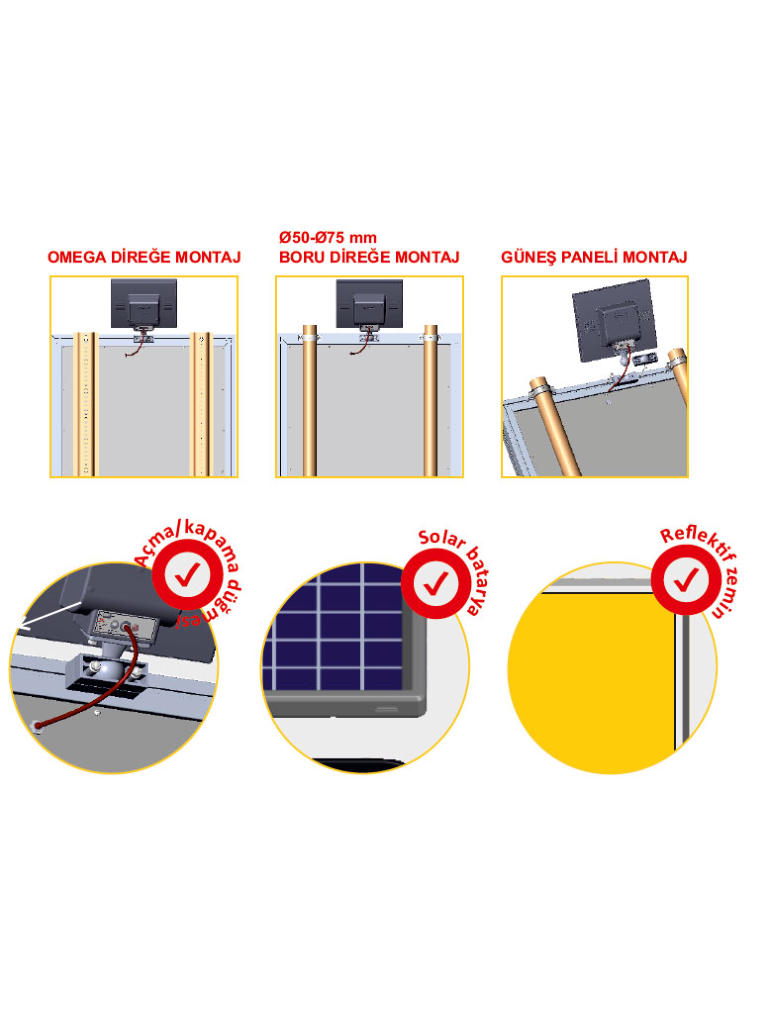

• Mounting on Omega pole and pole from Ø50 to Ø75 mm

• Protection class IP 54

• Reflective ASTM D 4956-11a Type I

• Wide usage area: warning and working areas on roads, parking lots and all kinds of areas that require occupational safety

Electronic Circuit Specifications

• Solar Panel Type: Glass Laminated

• Solar Panel Dimension: 345x293 mm

• Solar Panel Voltage: 10 V

• Solar Panel Current: 0.65 A

• Solar Panel Material: SLA

• Battery/LED Voltage: 12 V

• Battery/LED Current: 7.0 A/h

• Battery/LED Color: Red - White

• Battery/LED Size: Ø 5 mm

• Number of Battery/LED Flashes: 54 f/min

• Battery/LED F. Warning Distance: 500 m (night)

• Battery/LED Working Time All night with charging in daylight

• Battery/LED Operating Temperature: -20°C/+60°

Technical specifications

• To download the technical specification click.
